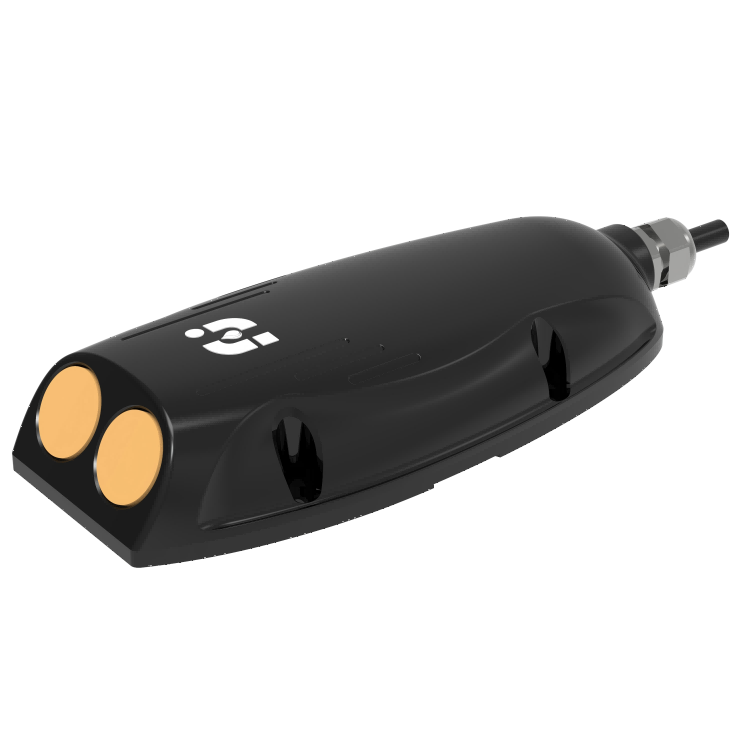

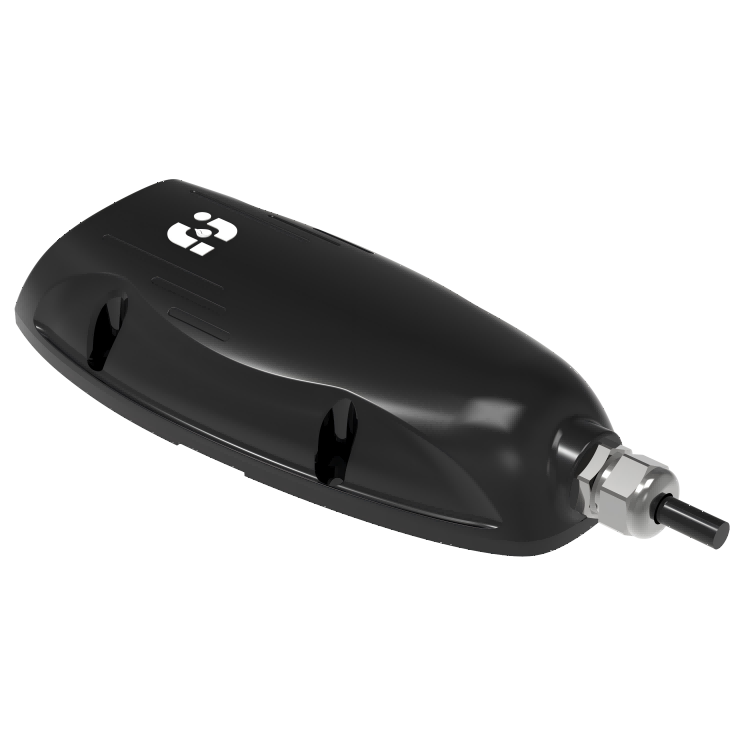

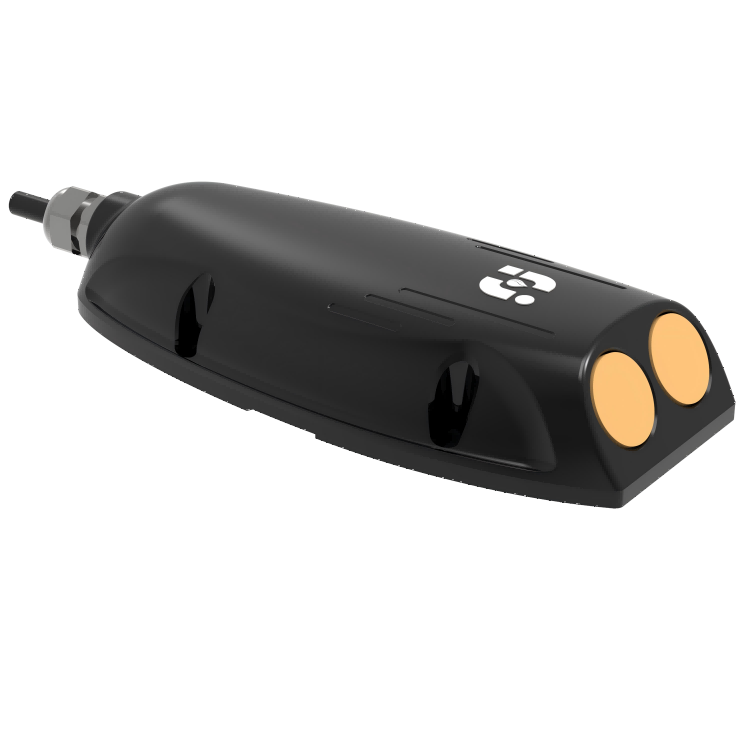

HJ-UD-A series Ultrasonic Doppler flow meter
HJ-UD-A series Ultrasonic Doppler flow meter is a high-performance, fixed-type flow measurement product independently designed and developed by ShenZhen HuaJu Scientific Instruments Co., ltd. Its fundamental principle is to measure water flow velocity and water level (area), and then calculate the flow rate of the water cross-section.

Dimensions(mm):159*76*30
Flow velocity range(m)：±0.02m/s~ ±5m/s
Water level measurement range(m)：0~ 10m
Material Download
Product Introduction Product Features Technical Parameters Application Fields Application Scenarios
Product Introduction
—

HJ-UD-A series Ultrasonic Doppler flow meter is a high-performance, fixed-type flow measurement product independently designed and developed by ShenZhen HuaJu Scientific Instruments Co., ltd. Its fundamental principle is to measure water flow velocity and water level (area), and then calculate the flow rate of the water cross-section.

Product Features
—
01
Dual-Mode Measurement Monitoring Measurement: High-penetration point measurement with multi-point, wide-range, and high-precision velocity detection. Scanning Measurement: Millisecond-level continuous rapid measurement to capture flow velocity fluctuations.
02
Supports Ultra-Low Velocity Mode: Capable of measuring flow velocities as low as 0.005 m/s.
03
High Measurement Accuracy: The product utilizes dual high-frequency, high-sensitivity transducers combined with low-phase-noise transmission and reception circuits, achieving high-precision flow velocity detection. It also includes a built-in high-precision temperature sensor to monitor water temperature in real time and adjust acoustic parameters, ensuring accuracy across various scenarios.
04
Compact and Durable Design: Small form factor with a streamlined body design, reducing the risk of debris accumulation and minimizing impact on water flow. The fully sealed housing is made of corrosion-resistant, high-strength plastic, ensuring reliability and durability.

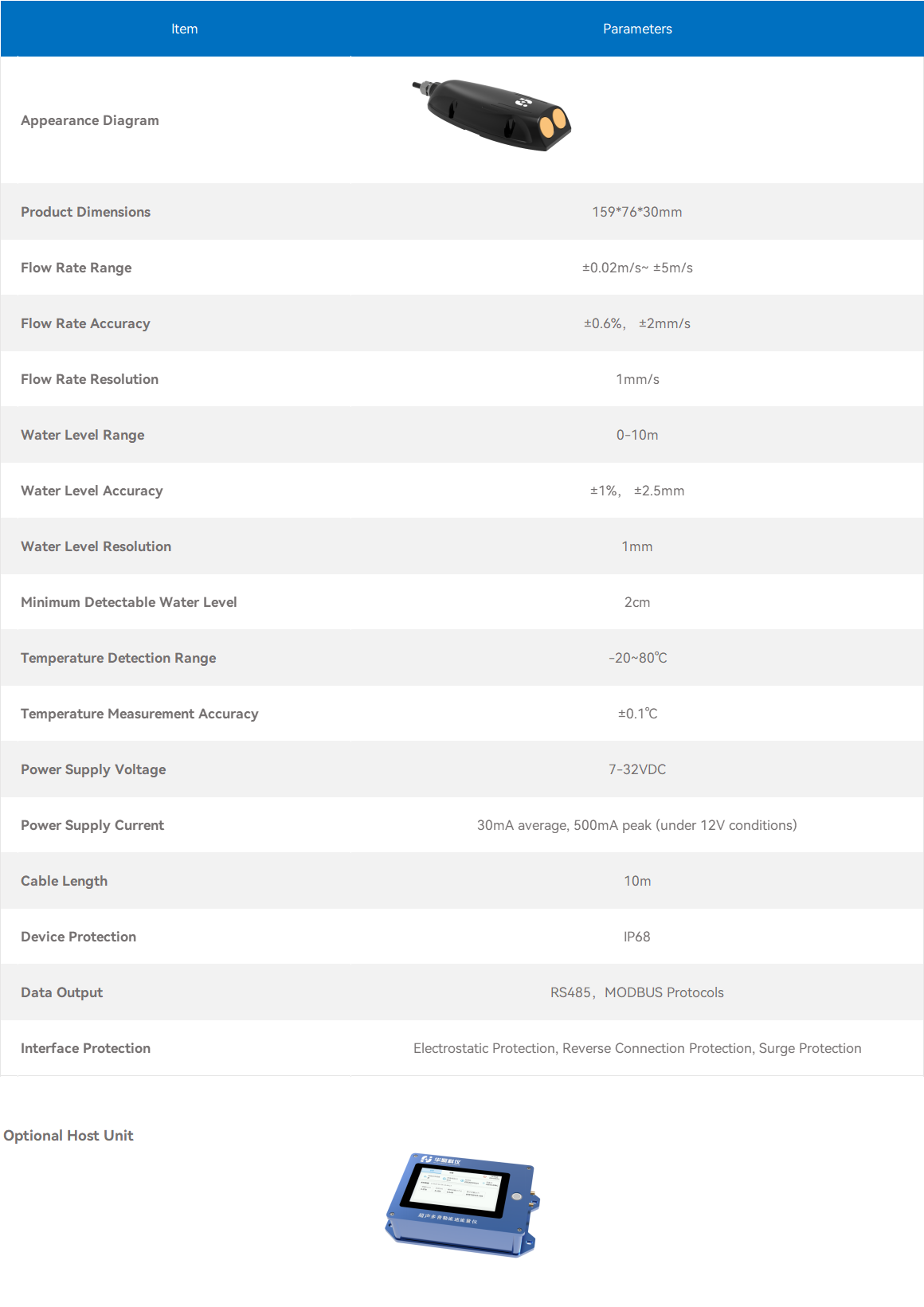

Technical Parameters
—

ADV

Application Fields
—
01
Flow monitoring in box culverts, underground pipe networks, drainage outlets, etc.;
02
Flow monitoring in open channels, rivers, pipelines, etc.

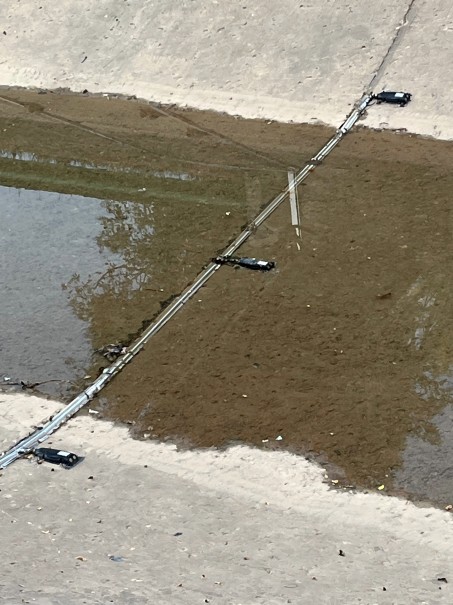

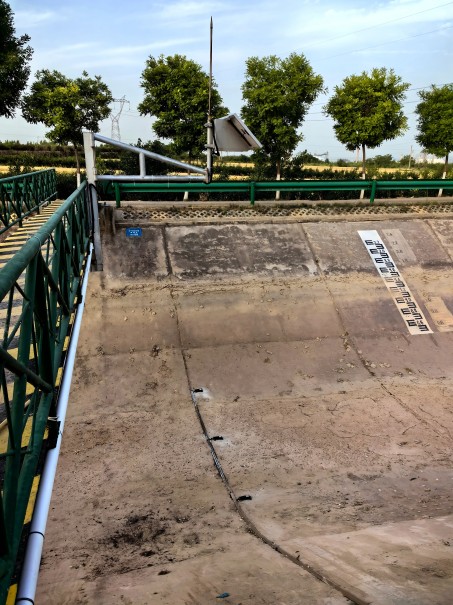

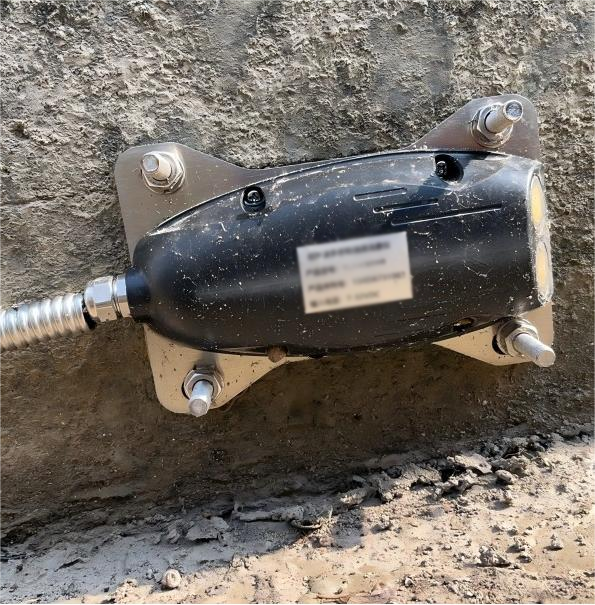

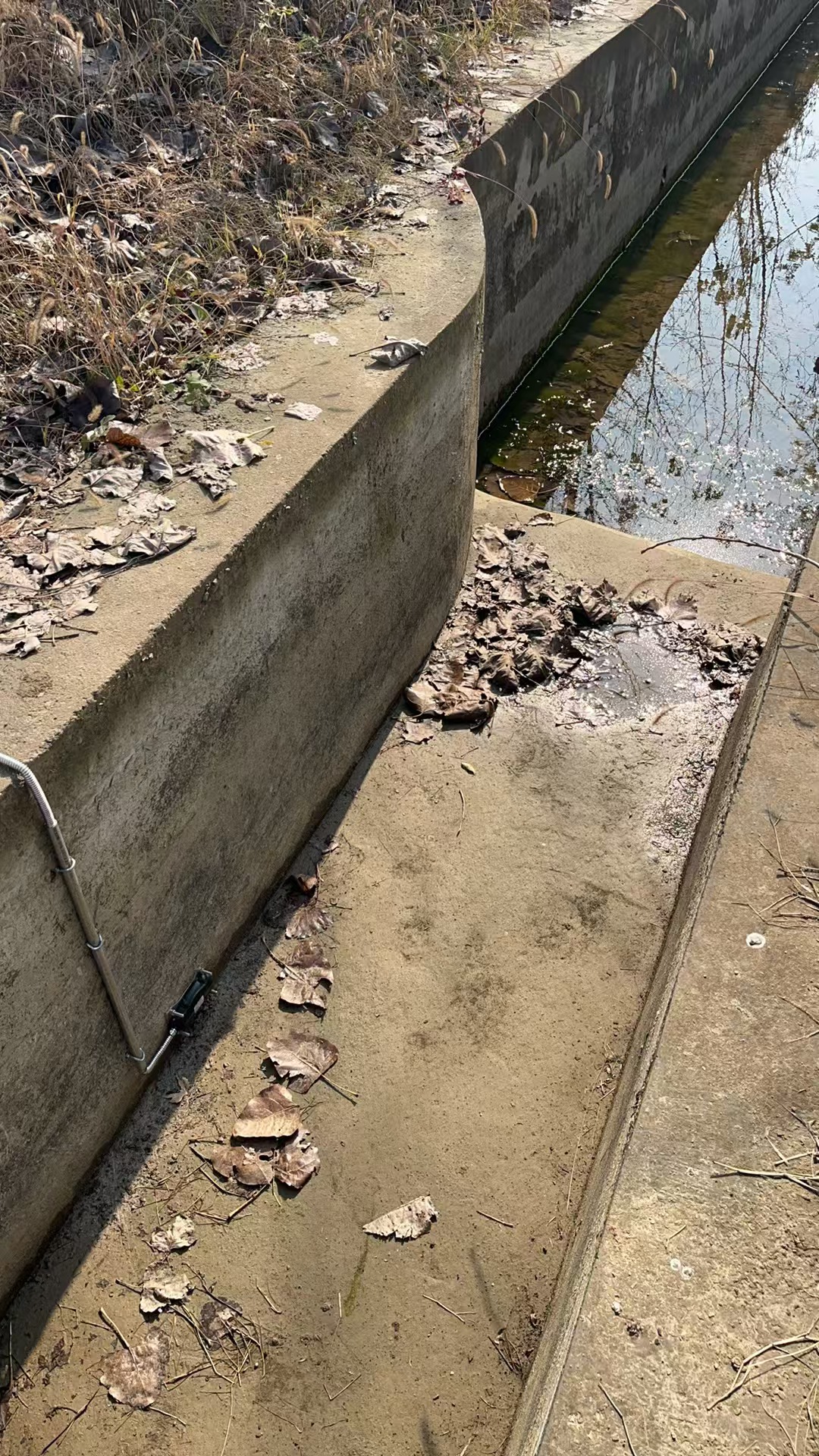

Application Scenarios
—
现场3(尺寸)
微信图片_20241205182729
现场1(尺寸605)
应用场景 PS
