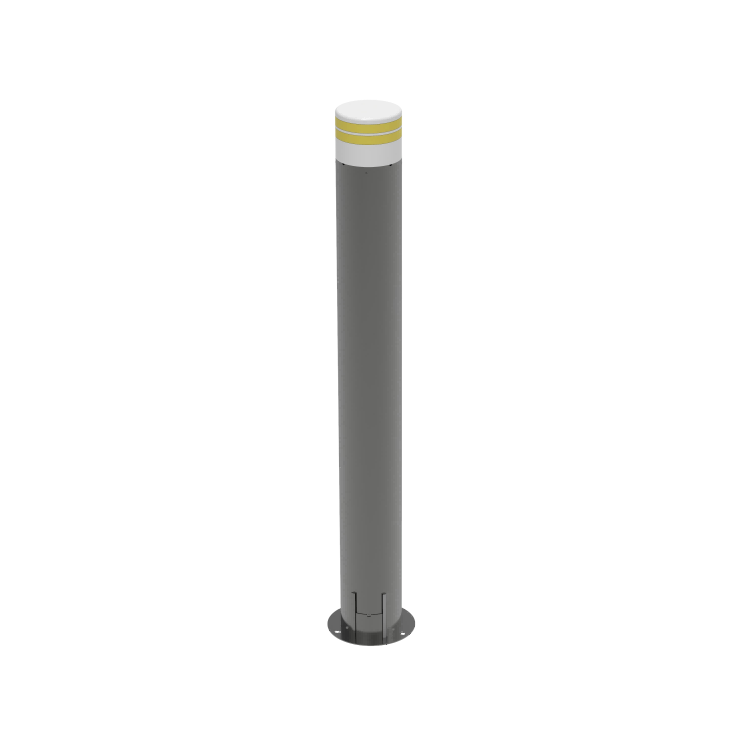

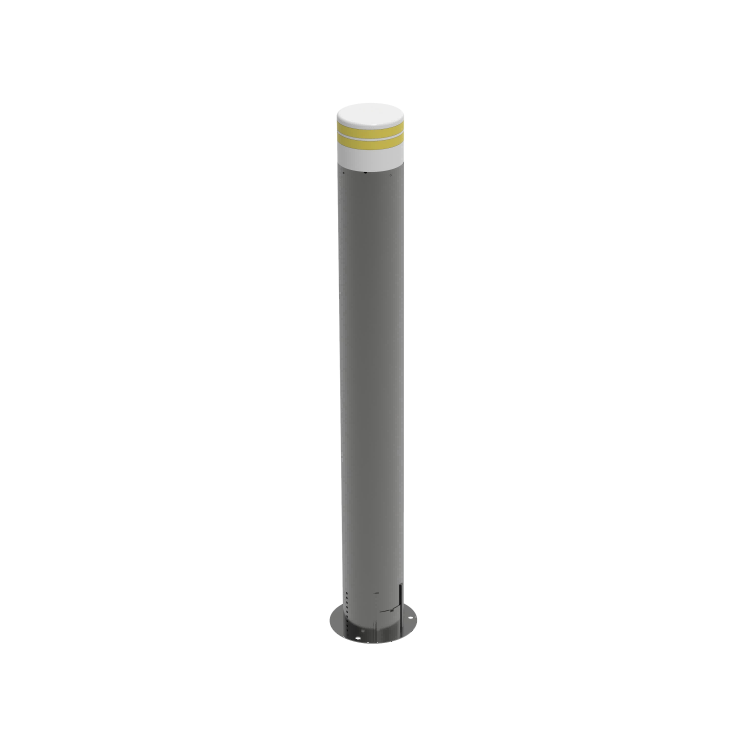

The Integrated Radar Water Gauge is a high-precision, low-power, highly integrated non-contact radar water level meter.

This product integrates functional units such as a power supply battery, high-precision radar level meter, RTU data transmission unit, Bluetooth parameter adjustment, and temperature measurement. It can be used for liquid level and flow measurement across various industries. The flow measurement principle is based on the water level-flow relationship of standard weirs or rating curves. By accurately measuring the liquid level, it calculates and outputs the instantaneous flow and cumulative flow at the cross-section. The liquid level measurement utilizes high-precision Pulse Coherent Radar (PCR) technology, which offers higher measurement accuracy, lower power consumption, and a more compact size compared to traditional pulse radar level meters. Additionally, the use of 60G sub-millimeter radar waves as the carrier signal provides the advantages of non-contact operation, high precision, small size, and energy efficiency. This ensures that measurements are unaffected by corrosion, temperature gradients, air pressure, surface vapor, bubbles in the water, or sediment. The optimized algorithm further enhances the accuracy of the measurement results.

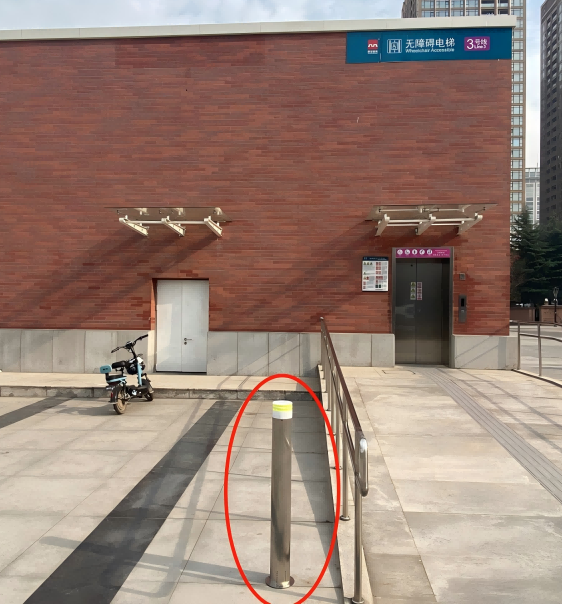

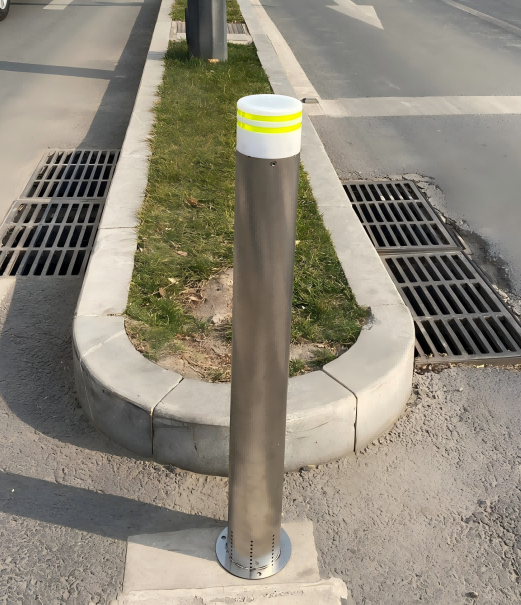

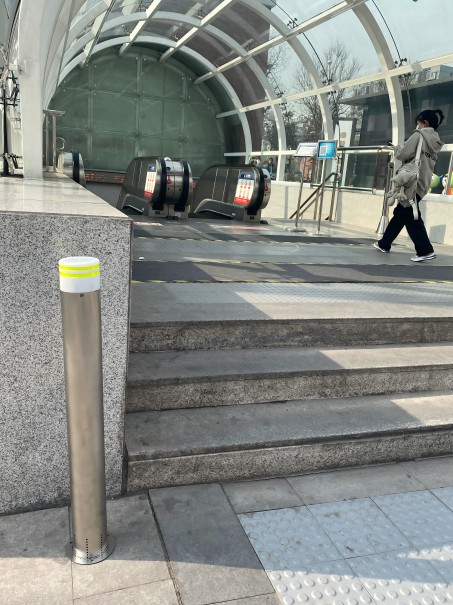

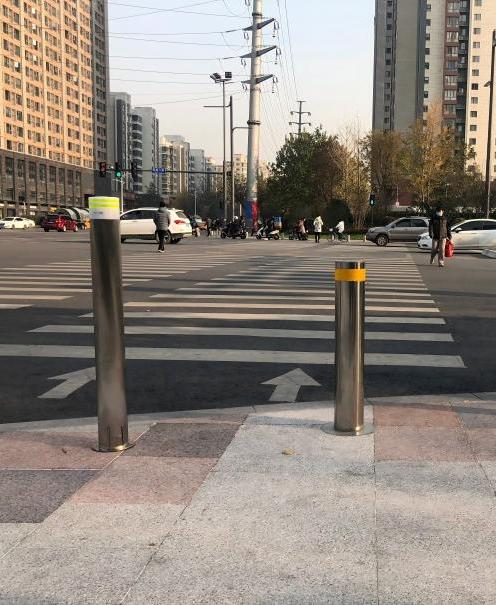

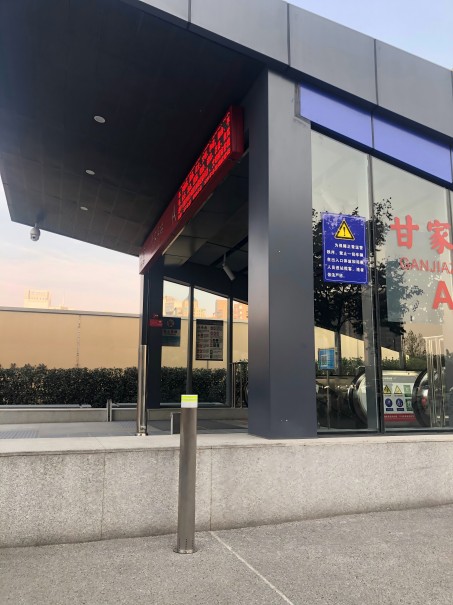

It can be widely applied in projects such as urban waterlogging monitoring and tunnel culvert water level monitoring.
