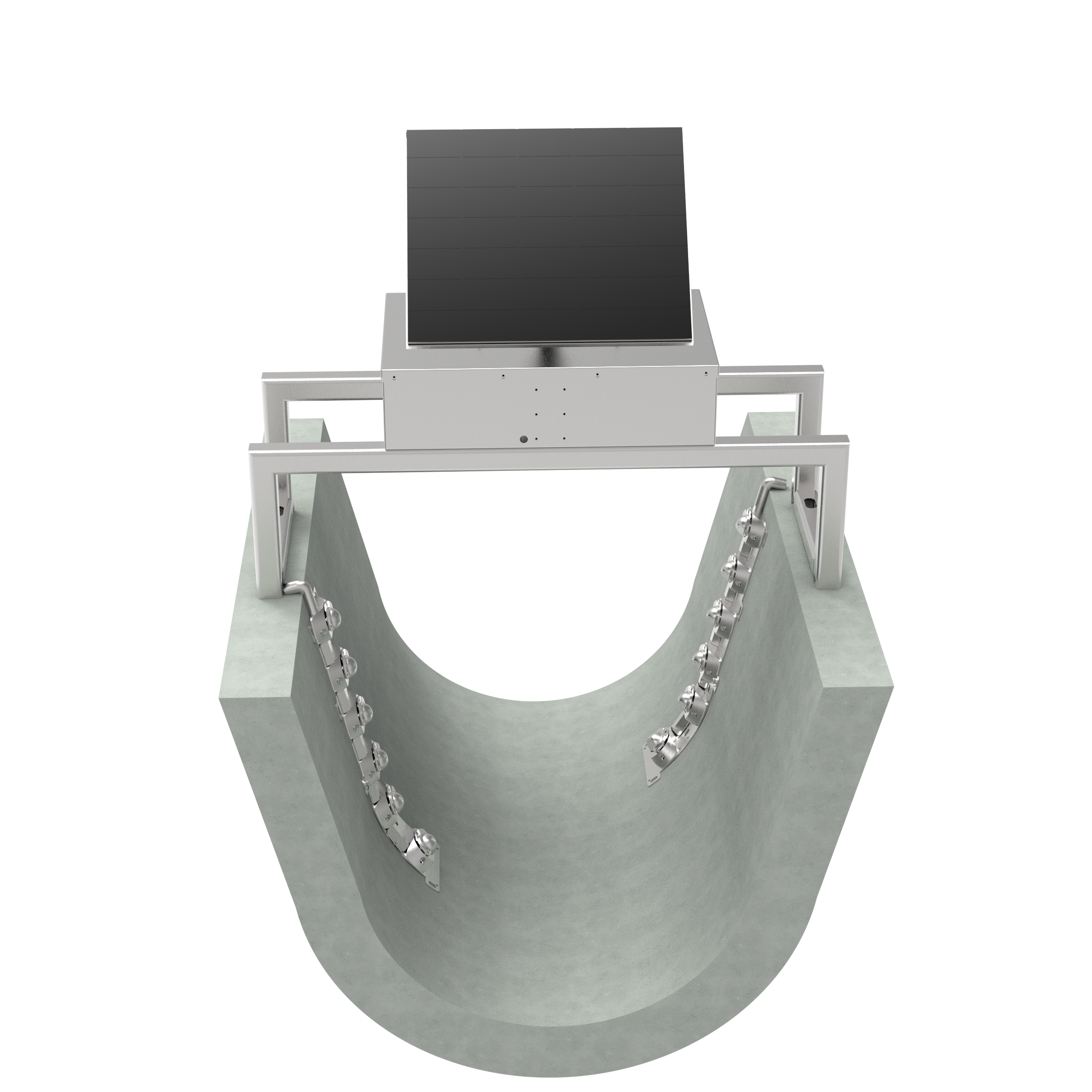

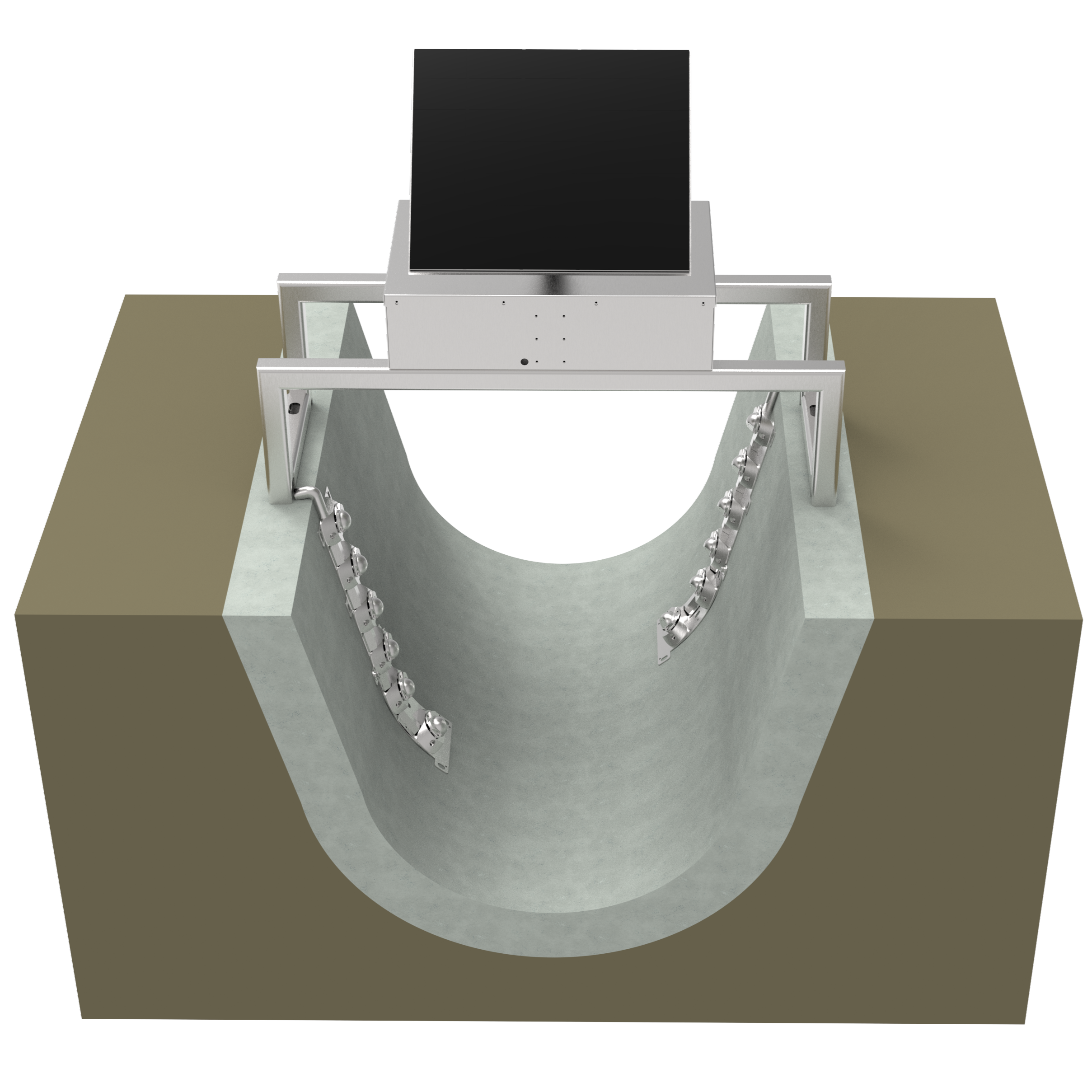

The HJ-UT-R Series
Flexible Flow Measurement Box
The HJ-UT-R Series Flexible Flow Measurement Box is a high-performance ultrasonic time-difference method open-channel flowmeter based on the Huaju HJ-UT platform. This flexible flow measurement box is mainly designed for U-shaped precast pipe section channels widely used in irrigation districts. Traditional solutions require the construction of standard cross-sections, while the flexible flow measurement box can be directly installed, which significantly reduces installation difficulty, improves installation efficiency severalfold, shortens the construction period, and ensures project progress.

Specifications (mm): Optional and customizable
Velocity Measurement Range (m/s): ±0.01 ~ ±5
Liquid Level Range (mm): 0–400 ~ 1600
Material Download
Product Introduction Product Features Technical Parameters Application Fields Application Scenarios
Product Introduction
—
The HJ-UT-R Series Flexible Flow Measurement Box is a high-performance open-channel flowmeter based on the ultrasonic time-difference method and the Huaju HJ-UT platform.


This flexible flow measurement box is mainly designed for U-shaped precast pipe section channels that are widely used in irrigation districts. Traditional solutions require the construction of standard cross-sections, whereas this flexible flow measurement box allows for direct installation. This not only significantly reduces installation difficulty and improves installation efficiency several times over, but also shortens the construction period and ensures project progress.
Product Features
—
01
Ideal for no-modification metering scenarios of U-shaped precast canals.
02
Minimal civil engineering work required, enabling efficient installation.
03
Features AIO (All-in-One) configuration, eliminating the need for external supporting facilities such as vertical posts.

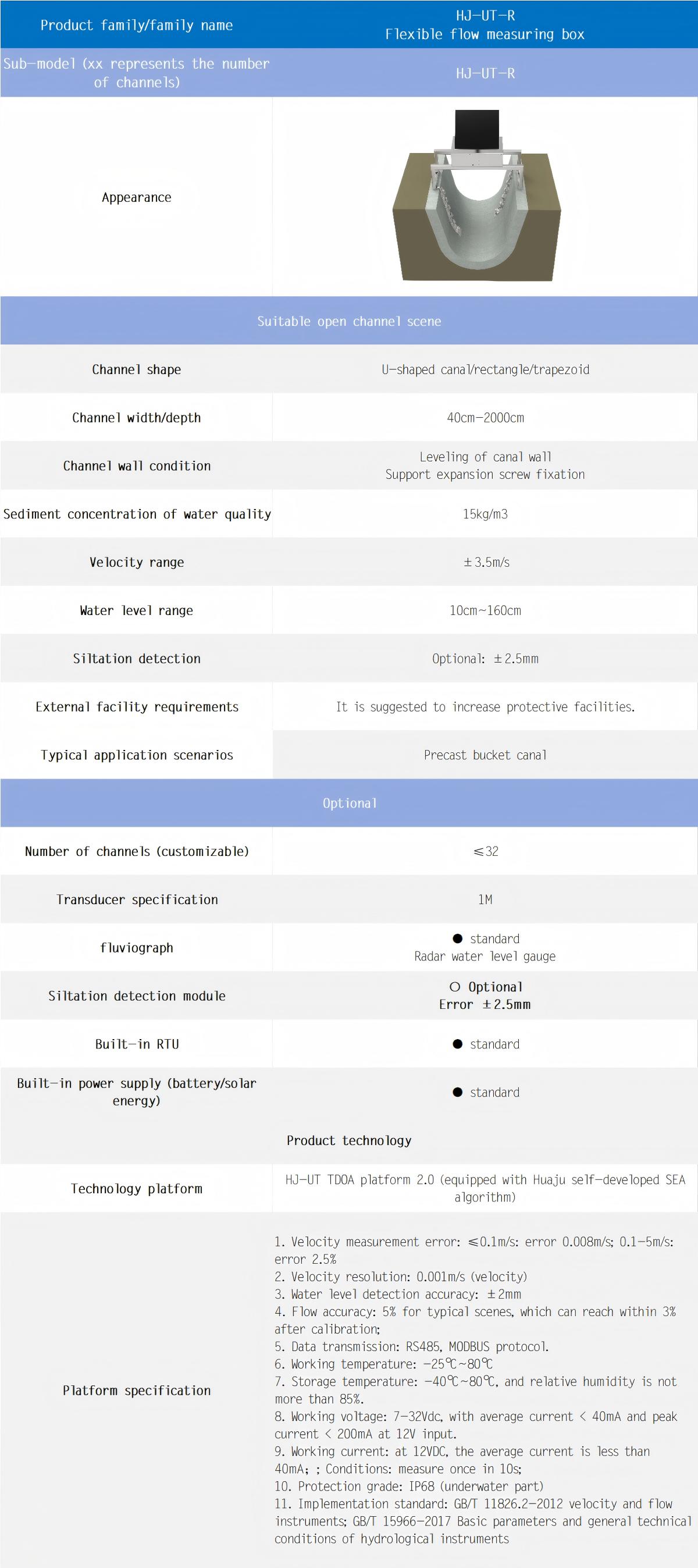

Technical Parameters
—

X

Application Fields
—
01
Flow measurement and monitoring for open channels and sluices in water conservancy, agriculture, irrigation districts and other scenarios.
02
Flow measurement and monitoring for urban drainage systems.

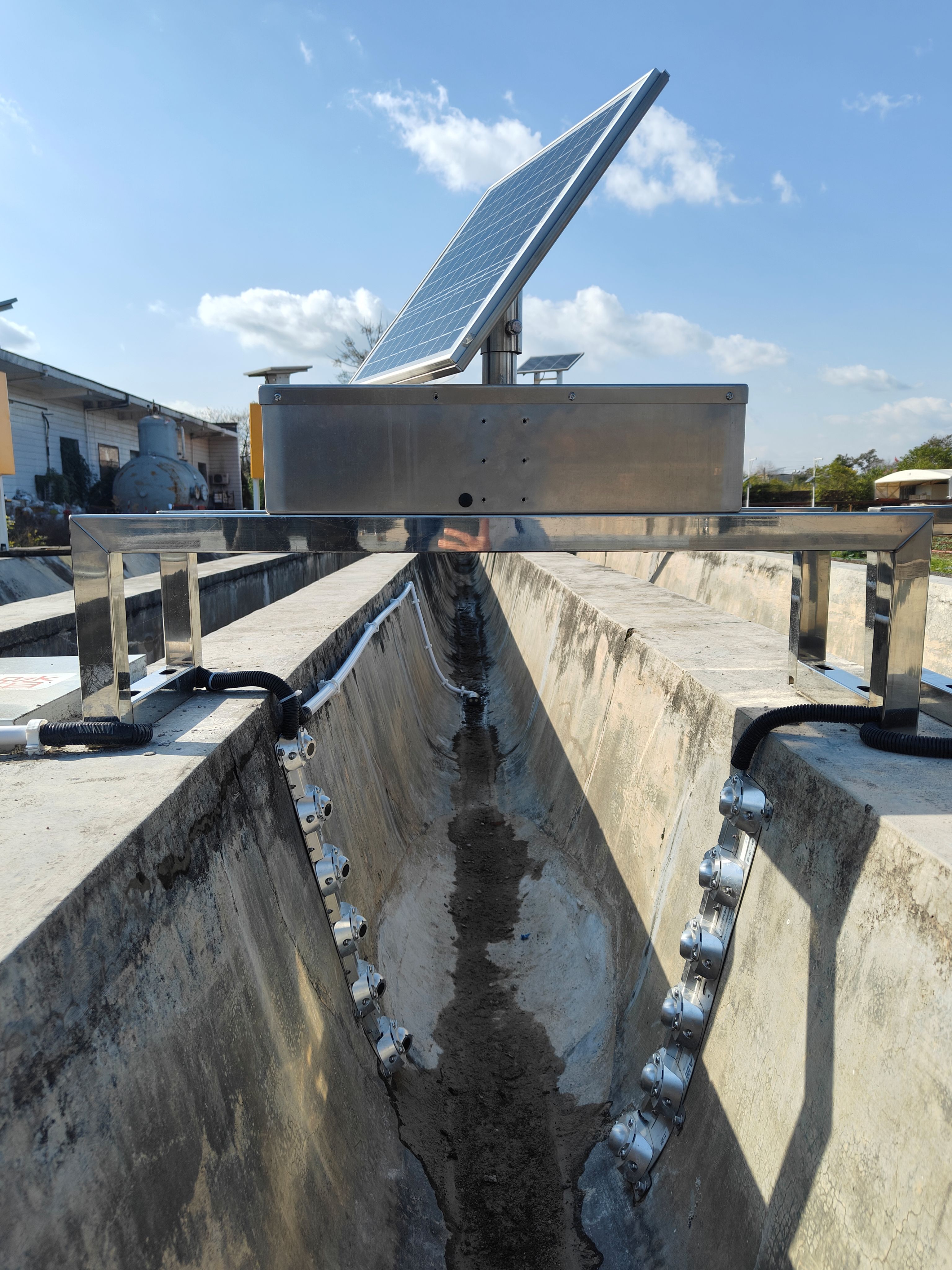

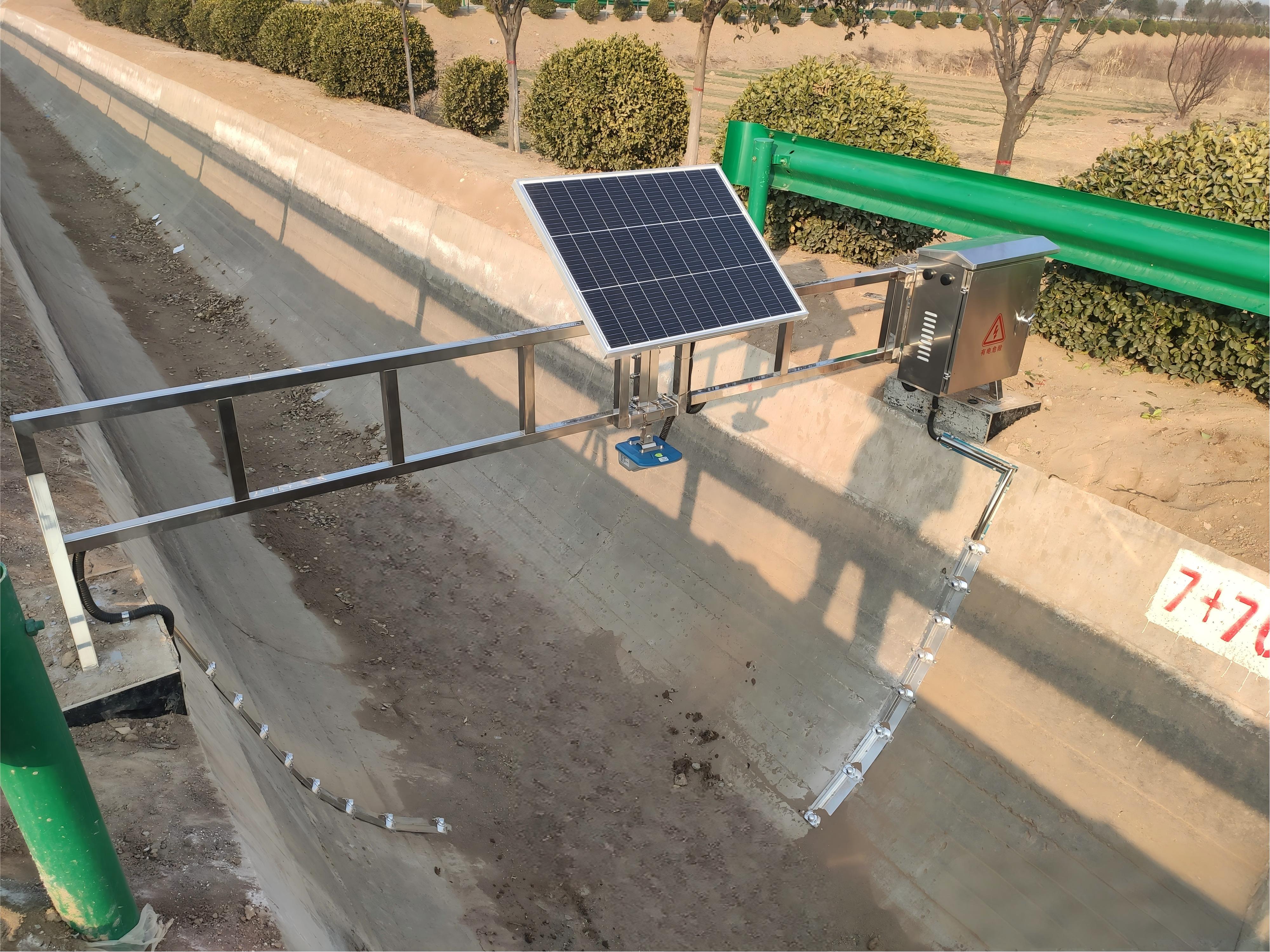

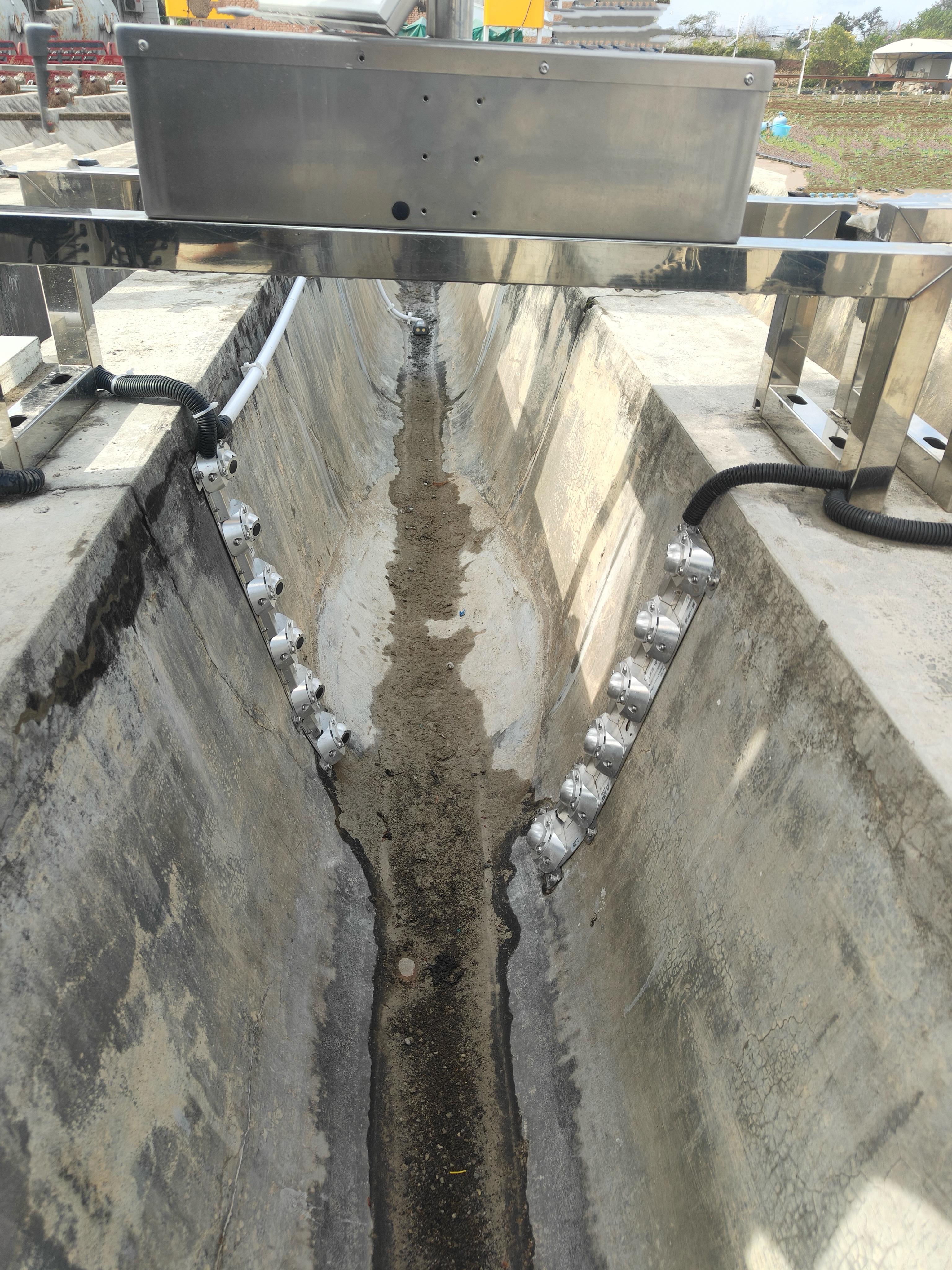

Application Scenarios
—
